Astronomy lab assignment

Phys 139-01 Modified by Dr. Villanueva Spring Semester 2021

Hubble's Law:

Determining the expansion rate of the Universe

Learning Objectives

Using analyses of images and spectra of selected galaxies, the students will

• Measure angular sizes of galaxies and find their distances;

• Measure the redshifts of spectral lines and find the recessional velocities;

• Determine a value for Hubble's constant;

• Estimate the age of the Universe from this constant and compare it to the age of the Sun and the Milky Way;

• Summarize how our view of the Universe has changed as the value of the Hubble constant has improved.

Materials

Each part of the procedure will have separate due dates - check with your instructor!

• Link to Google spreadsheet
  https://docs.google.com/spreadsheets/d/1D0XtEJAe-6YW3C2b2nCcg8pL0JyGJAusku4dzlc3MxI/edit?usp=sharing

Please make a copy of the spreadsheet!

Background and Theory

In the 1920's, Edwin P. Hubble discovered a relationship that is now known as Hubble's Law. It states that the recessional velocity of a galaxy is proportional to its distance from us:

ν = Hod  [Eqn. (1)]

where v is the galaxy's velocity (in km/sec), d is the distance to the galaxy (in megaparsecs; 1 Mpc = 1 million parsecs), and Ho is the proportionality constant, called "The Hubble Constant." Hubble's Law states that a galaxy moving away from us twice as fast as another galaxy is twice as far away as that galaxy (or, three times faster is three times farther away than another galaxy, etc.). The Hubble constant is a hotly contested quantity in astrophysics. In order to precisely determine the value of Ho, we must determine the distances to and velocities of many galaxies, preferably those extremely far away so that we get beyond the Milky Way's gravitational interaction with "nearby" galaxies.

(For the next part you should check out the instructions in the PDF. You should find them more helpful. Then skip ahead to Part I.)

Finding the distance knowing a galaxy's actual size and angular size

A trickier task is to determine a galaxy's distance, since we must rely on more indirect methods. One may assume, for instance, that all galaxies of the same type are the same physical size, no matter where in the Universe they are. This is known as "the standard ruler" assumption. To use this assumption, however, we have to know the actual size of the "ruler" and to do that, we need the distances to the galaxies that form our standard ruler. So, since we are working with spiral galaxies, we choose nearby galaxies such as Andromeda, Triangulum, Messier 81, and others to which we have found an accurate distance measure using variable stars or other reliable distance indicator. We find that, on average, the actual size of these standard ruler galaxies is 22 kiloparsecs (22 kpc or 22,000 parsecs or ~72,000 light years).

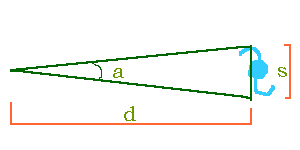

Theoretically, then, to determine the distance to a galaxy one would need to measure only its angular size and use the small angle formula: a = s / d, where a is the measured angular size (in radians!), s is the galaxy's true size (diameter, 22 kpc in our work here), and d is the distance to the galaxy.

a = s/d or d = s/a [Eqn. (3)]

There is another caveat, however. Each telescope and detector scales the images of celestial objects differently. While the actual angular size of a galaxy does not change, that galaxy might take up 30,000 pixels squared on one detector while on another one (having larger sized pixels) it takes up 5400 pixels squared. Since we may not know anything about the detector ahead of time, we need to figure out how much of the celestial sphere, in radians, is represented by each pixel. We can do this if one of our galaxies has an independent measurement of its angular size. That is the case for NGC 2903, the galaxy that is the closest one in our sample.

Data for NGC 2903 (http://www.messier.obspm.fr/xtra/ngc/n2903.html accessed 9 Feb. 2009):

Right Ascension 9 : 32.2 (h:m); Declination +21 : 30 (deg:m)
Distance 20,500 (kly); Visual Brightness 8.9 (mag); Apparent Dimension 12.6 x 6.6 (arc min)

Taking the apparent dimension along the long axis of 12.6 arc min, and knowing there are approximately 0.00029 radians per arc min, we find that the scale for this telescope and detector is:

12.6 arc min x 0.00029 rads per arc min ÷ 395 pixels = 9.3 x 10-6 radians per pixel.

Given the distance of 20,500,000 ly or ~6.3 megaparsecs, and using the small angle formula, this gives an actual size for the galaxy of about 23 kpc, close enough to the 22 kpc we've assumed so far.

It is up to you to determine criteria for what defines the edge of the galaxy. Just be consistent from galaxy to galaxy! This may be a source of a systematic error in your lab.

Finding the recessional velocity of a galaxy

The velocity of a galaxy is measured using the Doppler effect. The radiation coming from a moving object is shifted in wavelength:

 [Eqn. (2)]

where λtrue is the true wavelength of the radiation, λmeasured is the wavelength as measured at the telescope, making  the fractional value that the velocity of the galaxy is of the speed of light.

In this case, wavelengths are measured in Ångstroms (Å), an outdated unit equal to 1 ten-billionth of a meter (10-10 m). The speed of light has a constant value of ~300,000 km/sec. The quantity on the left side of equation (2) above is usually called the redshift, and is denoted by the letter z.

We can determine the velocity of a galaxy from its spectrum by measuring the wavelength shift of an absorption or emission line whose wavelength is known and solve for the velocity, v.

PART I: Finding the Value of the Hubble Constant
(Week 1)

The list of galaxies you will work with can be found at https://depts.washington.edu/astroed/HubbleLaw/galaxies.html .
Select the galaxies you are going to work with (the ones with the negative signs in front of the galaxy ID). Write the galaxy ID in your spreadsheet.

To find distances and recessional velocities use the instructions in the PDF

Finding Distances
For each galaxy click on “Image”.
Measure the galaxy’s angular size and record the angular size in your spreadsheet.

From the angular size calculate the galaxy’s distance and record the distance in your spreadsheet.

Do this for all your galaxies.

Finding Recessional Velocities
Now click on “NGC xxxx Spectra”.

Measure the wavelengths of the Calcium H and K lines and the Hydrogen-alpha line. Record these wavelengths in your spreadsheet.

Compute the redshift for each wavelength. From the three redshift calculate the average redshift. Record these redshifts in your spreadsheet.
(Make sure the redshifts agree!)

Use the average redshift to calculate the galaxy’s recessional velocity.

Do this for all your galaxies.

Finding the Hubble Constant, Ho
To find the Hubble constant make a plot of the recessional velocities (on the y-axis) vs. the distances (on the x-axis) in your spreadsheet.

Run a best-fit trendline through your data. Force the line to go through the origin (set the intercept to zero). Be sure to print the equation of the line and the R-squared (R2) value.

The Hubble constant is equal to the slope of this line.

Check your spreadsheet with your instructor.

PART II: Age of the Universe (Week 2)

If the universe has been expanding at a constant speed since its beginning, the Universe's age would simply be 1/Ho.

• Find the inverse of your value of Ho.

• Multiply the inverse by 3.09 x 1019 km/Mpc to cancel the distance units.

• Since you now have the age of the Universe in seconds, divide this number by the number of seconds in a year: 3.16 x 107 sec/yr

Questions (Please copy and paste these questions into a Word Document and type in your answers for each one before turning in to your instructor)

1. What are your values for the Hubble constant and the age of the Universe? Quantitatively (use ratios) compare your maximum age for the Universe to the age of the Sun (5 billion years), and to the age of the oldest stars in the Milky Way (approximately 12.5 billion years). Comment on your findings.

2. What happens to the calculated age of the Universe if the Hubble constant were to be larger than what you found here? How about for a smaller Hubble constant? (That is, would the age of the Universe increase or decrease if your constant were 85 km/sec/Mpc instead of 75 km/sec/Mpc? How about if your constant were 65 km/sec/Mpc instead of 75 km/sec/Mpc?)

3. Why does the best-fit line to your data need to go through the origin of your graph? Where is this "origin" located in the Universe?

4. The long-standing view of the universe before Edwin Hubble was that everything was standing still. Discuss how your analysis either supports or refutes this claim.

5. Theoretically, your plot should be a straight line, but it probably isn't. Let's consider a few of the possible sources of error.

Which assumption that we made in this analysis do you think carries the most uncertainty? The way you calculated the distances or the way you calculated the velocities? Explain.

6. The formula you used to determine the distances to these galaxies was distance = actual size of the galaxy divided by measured angular size: d = s / a. How would an over-estimate or an under-estimate of the assumed actual diameter of a galaxy affect your estimate of the distance to it?

7. Pertaining to the previous question, what would be the effect on your value for the Hubble constant of your consistently under-measuring or over-measuring the angular diameter of the galaxies?

8. Summarize what is meant by “Hubble's Law” and how the relationship was discovered. Include in your discussion here an explanation of the impact that the observations made by Edwin Hubble and by astronomers using the Hubble Space Telescope had on our view of the Universe. What is the currently accepted value for the Hubble constant? How does your value compare? Include any closing comments if you'd like. This is a writing exercise, so please express yourself clearly and concisely. Include a bibliography.

Congratulations. You have now earned your first cosmology badge!

Original document found at UW Astronomy Education Clearinghouse (Shortened version by hand)

https://sites.google.com/a/uw.edu/introductory-astronomy-clearinghouse/activities/galaxies-and-cosmology/hubbles-law
