Virtual EarthQuake Activity part 3

Richter Magnitude

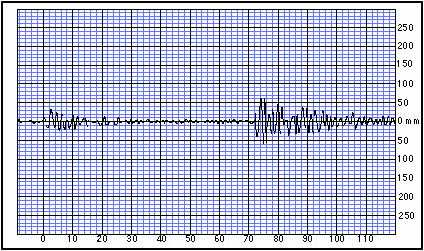

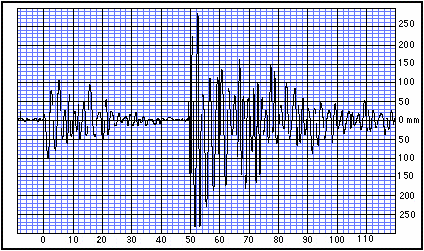

Below are the three seismograms of the earthquake you are studying. You have already determined the epicentral distances. Measure the maximum amplitude of the S-wave for each seismogram and record your estimate in the box below the seismogram. Note that although only one amplitude measurement is necessary, you should measure the amplitude for each of the three stations. This will enable you to determine the magnitude value as an average of three values, thus increasing the likelihood that you are accurate in your estimate.

Top of Form

Eureka, CA Maximum S Wave Amplitude= (with EPICENTRAL DISTANCE OF 481 km)

Answer here -

Elko, NV Maximum S Wave Amplitude= (with EPICENTRAL DISTANCE OF 700 km)

Answer here -

Las Vegas, NV Maximum S Wave Amplitude= (with EPICENTRAL DISTANCE OF

Answer here -

Bottom of Form
