Business system analysis

Super Take-out System

Problem Description

Traditional take-out industry mostly depends on the artificial way to conduct a series of management. For example, when receiving orders, it requires people to record dishes, delivery address and guests’ telephone number, and to calculate the take-out cost, which not only wastes time and reduces the efficiency, but also increases the cost, reduces the profits of the industry, and then makes the traditional take-out consumption suffer bottleneck limitation. Besides that, traditional take-out industry’ marketing means such as publicity and external service are confined to the original medium, for example, to distribute leaflets still needs human to complete. The traditional shop take-out management also adopts papery materials to save information. This method is inconvenient to query or update and easy to tear, and it is also difficult to save with low confidentiality.

In take-out industry, the e-commerce is still in the initial stage of development. But with the continuous increase of Internet users, and accelerating pace of people’ work and life, the network consumption demand will be huge, while the online meal ordering is just developed in this context. Online meal ordering can largely reduce the waste of time, and at the same time help merchants earn more profits, so the network online meal order is bound to become a part of young Internet users’especially white-collars’life.

System Capabilities

The new system should capable of:
Collecting the basic information, phone number, address, ordered take-out products of consumers
Collecting the basic information, phone number, address, unit price of delivery products, and the delivery fee of the merchants.
Allowing merchants inquire consumers’ order information
Connecting System through various devices (I.E. desktop and smart phones)

Business benefits

save operating cost for merchants
improve the ordering efficiency
obtain more detailed and accurate consumer information
provide more efficient publicity channels
offer more excellent customer experience

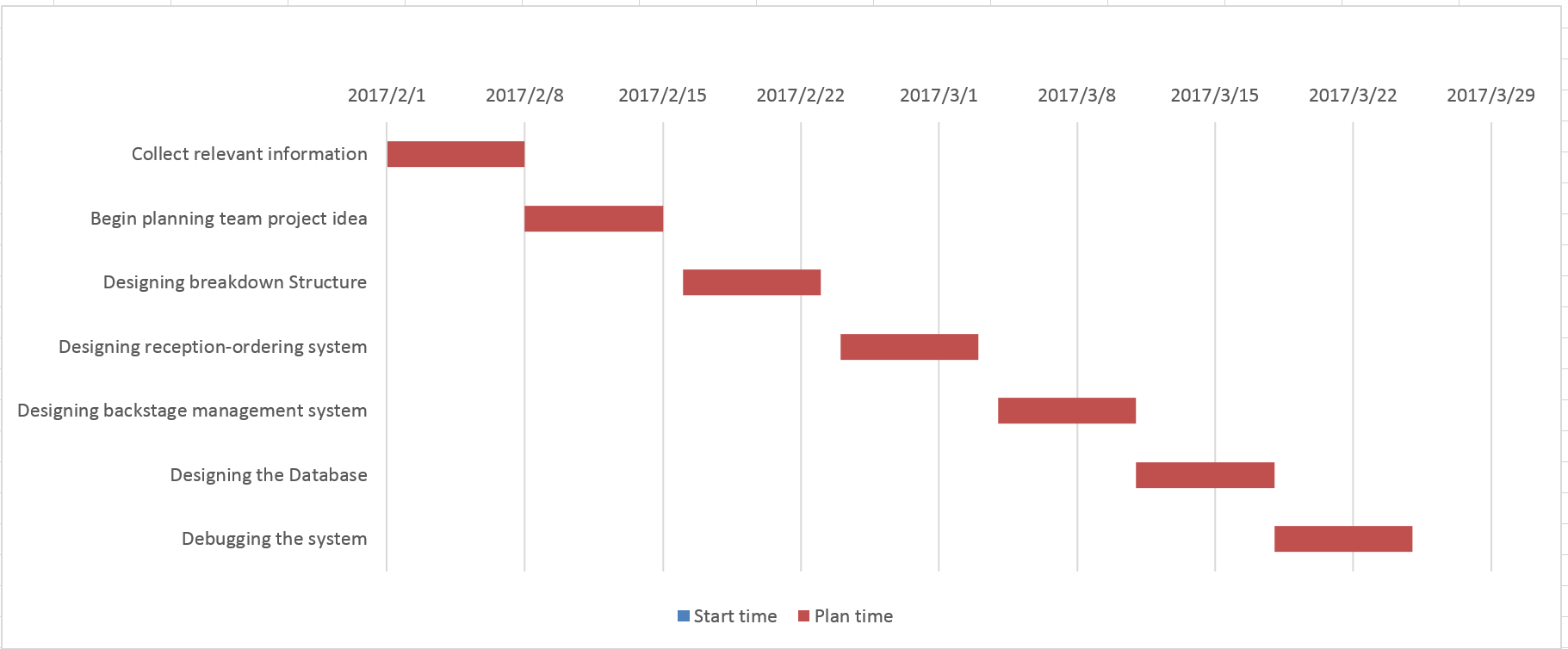

Schedule Plan-

First Version

Collect relevant information

7days

Begin planning team project idea

7days

Designing breakdown Structure

7days

Designing reception-ordering system

7days

Designing backstage management system

7 days

Designing the Database

7 days

Debugging the system

7 days

Business system analysis 1

Budget Plan

A. Summary Actual Budget:

Server for web hosting and database: $0

Labor: $0 (college students working on this for a project grade)

Total Estimated Budget: $0

B. Summary “Actual” Budget

Server for web hosting and database: $200

Labor: 2 Systems designers half time: $45/hour

Total estimated bid: $15000

3.1 Functional Requirements

Web Order System Module

This allows the customer to interact with the system by placing an order. For the restaurant customers to complete this task, they need to provide the following functions:

1. Create an account

2. Manage their accounts

3. Log in to the system

4. Go to the restaurant menu

5. Select an item from the menu.

6. Add a project to the current order.

7. View their current order.

8. Delete item / delete all items from the current order.

9. Provide payment details.

10. Place an order.

11. Receive confirmation in order form.

12. View the order

Menu management system module

The module provides a powerful user with only the functionality of the administrator. No other users of the system (such as restaurant employees or customers) are not available.

Using the graphical interface, it will allow the administrator to manage the menu that is displayed to users of the Web subscription system:

1. Add / update / delete food categories from the menu.

2. Add / update / delete food from the menu.

3. Update the price of the given food.

4. Update the additional information (description, photo, etc.) of the given food

Order Retrieval System Module

This is the simplest module in all three modules. Its design is only used by restaurant staff and offers the following features:

1. Retrieve a new order from the database.

2. Display the order in an easy-to-read, graphical way.

Restaurant staff offers the following features:

•Log in system

•View pending orders

•Mark the order status as delivered or delivered

•Cancel order

3.2 Non-functional Requirements

The subcategories of non-functional requirements given are security and performance requirements.

Security

The identified non-functional security requirements include:

• All data transmitted over the network will be encrypted using openSSl.

• All employees can only log in to one device at a time

• The password strength for all users will be performed during account creation.

Performance requirements

The server can support at least 200 connections at the same time.

The server can support any number of activities, in any case will not lose the meal / order and any payment will not be lost

3.3 software and hardware requirements

Supported hardware platforms

For initial development of Take-out management system only a single computer is required. The recommended minimum system should have 3GHz processor, 4GB RAM, and disk space as required. For a typical, full deployment of take-out management system, the minimum hardware environment should have:

Web application server - 3 GHz processor, 4GB RAM, 30GB disk
Database server -3 GHz processor, 4GB RAM, 100 GB RAID 4 + disk
File-server - 2 GHz processor, 512 MB RAM, RAID 5 storage with appropriate disk space
Application cluster - Application-dependent sizing

Prerequisite Software Requirements

The following software applications must be available on the planned hardware environment before installing the take-out management system. The applications are:

Browser (one required, client-side)
Web application server (one required, server-side)
Relational Database (one required, server-side)
File vault server (one required, server-side)

Server-side Software Requirements

Web Application Server (1 required) - Apache Tomcat
Relational Database Server (1 required) - MariaDB database server

Client side software requirements

The client side the following software to be to access the system:

A web browser – Firefox version 41 and above, Microsoft internet explorer version 11 and above or Chrome.

Java Web Start (Standard Edition) version 1.4.2 - 1.5.0

UML DESIGN Use Cases In order to facilitate a clear and clear view of how end users interact with the system, actors (end users), use case diagrams, and detailed use cases are described for use cases. Find the use cases that are used to log in, log out, add menu items, update menu items, delete menu items, add employees, delete employees, place orders, process payments, accept orders, and deliver items.
Actors
There are three actors in system including the admin, restaurant employee/waiter and customer. The Admin is a super actor and can access virtually everything in the system

4.1 Use Case Diagram

Pic 4-1 show the use case diagram for the take-out ordering system.

Pic. 4-1 Use case diagram

4.2 Use case descriptions Login use case is shown in the figure below

Use Case	Log In
Primary Actor	Customer
Goal In Context	Enable a consumer access to the system for order placement
Preconditions	The consumer has a valid username and password and is not already logged in
Trigger	The customer requires access to the system to perform their action
Scenario	1) The customer selects ‘Log In’ from the menu 2) The system prompts the user for their username and password 3) The user enters their username and password 4) The device enables access to the system according to access control
Exceptions	The user enters an invalid username or password

log out use case

Use Case	Log out
Primary Actor	Customer
Goal in Context	Disable user access to the system
Preconditions	The user is already logged in
Trigger	The user no longer requires access to the system.
Scenario	1) The user selects ‘Log Out’ from the menu 2) The device disables access to the system
Exceptions	The user enters an invalid username or password

Place order use case

Use Case	Place order
Primary Actor	Customer
Goal in Context	Allow user to place meal order
Preconditions	The user is already logged in
Trigger	The user wants to place an order of the selected meals
Scenario	1) The user selects all the desired meals from the menu 2) The customer selects check out button. 3) The customer confirms the order and selects payment mode 4) The systems confirm a valid payment mode. 5) A confirmation message is displayed
Exceptions	The user enters an invalid payment mode.

View order use case

Use Case	View order
Primary Actor	Restaurant employee
Goal in Context	View consumer orders
Preconditions	The user is already logged in
Trigger	Restaurant employee need to check the placed orders
Scenario	1) The user selects orders from the menu. 2) The device display a list of placed and pending orders.
Exceptions	No orders placed

Deliver order use case

Use Case	Deliver order
Primary Actor	Restaurant employee.
Goal in Context	Deliver a pending order.
Preconditions	The user is already logged and is the pending orders menu.
Trigger	The user requires to deliver certain orders.
Scenario	1) The user selects all the orders he or she wants to deliver. 2) The user clicks deliver button 3) The system changes the status of order into delivering and alerts the customer.
Exceptions	No pending orders.

Cancel order use case

Use Case	Cancel order
Primary Actor	Restaurant employee
Goal in Context	The user want to cancel a certain pending order.
Preconditions	The user is already logged in and is in the pending order menu.
Trigger	The user wants to cancel an order that cannot be delivered due to technical details.
Scenario	1) The user selects all the orders to be cancelled 2) The user clicks the cancel button. 3) the system prompts the user for a confirmation. 4) on clicking ok the system changes the status of the order to cancelled and alerts the customer.
Exceptions	No pending orders.

Process Payment use case

Use Case	Process payment
Primary Actor	Restaurant employee
Goal in Context	Process payment for a delivered order.
Preconditions	The user is already logged in
Trigger	The user wants to process payment for a delivered order.
Scenario	1) The user selects process payment from the menu. 2) The device displays a list of the orders the specific user is delivering. 3) the user selects all the orders he or she wants to process payment for. 4) the user clicks process payment button. 5) the systems processes payments, displays a confirmation message and sends a receipt to the customer.
Exceptions

Add Menu Item Use Case

Use Case	Add menu item
Primary Actor	administrator
Goal in Context	Add a new meal to the menu.
Preconditions	The user is already logged in
Trigger	The restaurant needs to include a new meal to the menu
Scenario	1) The user selects add menu item from the main menu. 2) The system displays a form where the user enters name of the meal, category, description, images and price. 3) the user clicks add button and confirms the details. 4) the system updates the database and displays the meal on the customer menu.
Exceptions

Update Menu item use case

Use Case	Update menu
Primary Actor	Administrator
Goal in Context	Change details of an item such as price of a meal.
Preconditions	The user is already logged in
Trigger	The user wants to update the menu.
Scenario	1) The user selects menu items from the main menu. 2) The system displays a list of all the items in the menu. 3) The user selects an item to update. 4) The system displays a form with details of the menu item in editable fields. 5) The user edits the intended fields and clicks save button. 6) The system prompts the user to confirm the given details. 7) On confirmation, the system saves the changes in the database, updates customer and displays a confirmation message to administrator.
Exceptions	No menu item added.

Delete menu item use case

Use Case	Delete menu item
Primary Actor	Administrator
Goal in Context	Delete meals from the menu
Preconditions	The user is already logged in
Trigger	A certain is no longer available in the restaurant and the admin wants to remove it from the menu.
Scenario	1) The user selects menu items from the main menu 2) The system displays a list of all the menu items. 3) The user marks all the meals to delete and clicks the Delete button. 4) The system prompts for confirmation. 5) On confirmation, the system deletes the items from the database, update the customer menu and displays a confirmation message to the administrator.
Exceptions	No items in the menu.

Add employee use case

Use Case	Add Employee
Primary Actor	Administrator
Goal in Context	Create a new user in the system.
Preconditions	The user is already logged in
Trigger	The user wants to add a new employee to the system.
Scenario	1) The user selects Add employee form the main menu. 2) The system displays a form where administrator add the new employee details 3) The user clicks add button. 4) the system displays a random password which the administrator is supposed to take down and click ok. 5) the systems commit the changes to the database and displays a confirmation message to the user.
Exceptions

Delete Employee use case

Use Case	Delete Employee
Primary Actor	Administrator
Goal in Context	Block an employee from accessing the system.
Preconditions	The user is already logged in
Trigger	The user wants to deactivate an employee in the system.
Scenario	1) The user selects delete employee from the main menu 2) The system display a list of all the employees. 3) The user selects the desired employee and clicks the delete button. 4) The system prompts the user for a confirmation. 5) On confirmation, the system sets a flag to inactive in the database and displays a confirmation message to the user.
Exceptions	No Employee in the system.

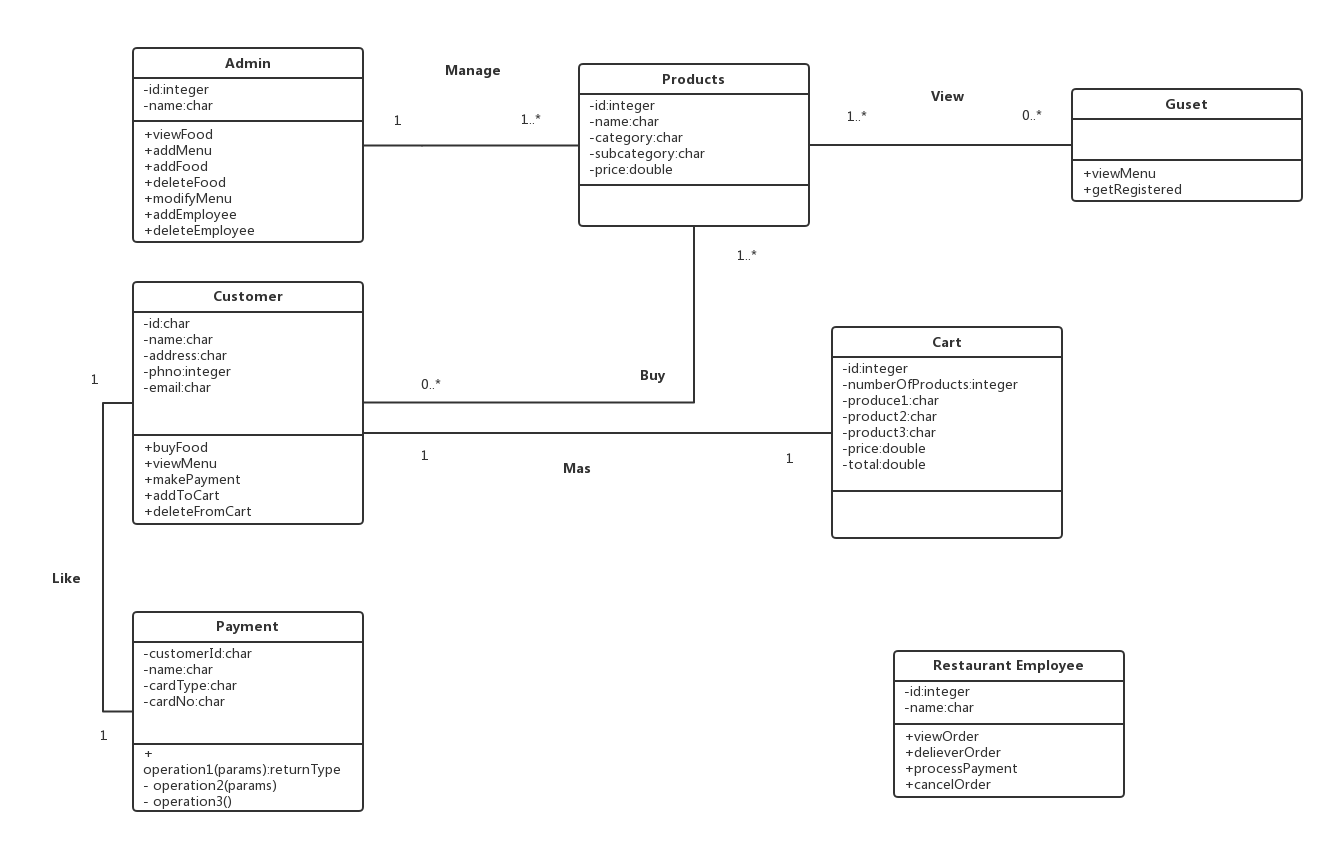

Domain Class Diagram

The following subsection presents descriptions for the classes identified for the take-out ordering management system and their relationships.

Business system analysis 2

Admin class

This class represents the system administrator and all the operation he or she can perform in the system. The functions include View Food, Add Menu, Delete Food, Modify Menu, Add employee, Delete Employee.

Products Class

This represent the individual dishes and their attributes include name, category, and subcategory and unit price.

Guest Class

This class represent a individual who visit online order web application for the first time. The individual can be able to view menu as well as Signing Up.

Customer class

This class represent a consumer with an established account. The class attributes include customer ID, name, address, phone number and email. The class functions View Menu, Buy Food, Add to Cart, Make Payment and Delete from cart.

Cart Class

This represent the cart with all the meals or dishes to be ordered. The class attributes include order Id, number of items in the cart, list of products and their unit place as well the total price.

Restaurant Employee Class

This class represents the restaurant staff member. The class attributes include: staff Id and name.

The class functions include view order, deliver order, process payment and cancel order.

Payment Class

This class represent the payment. Its attributes include customer Id, name, and card type and card no.

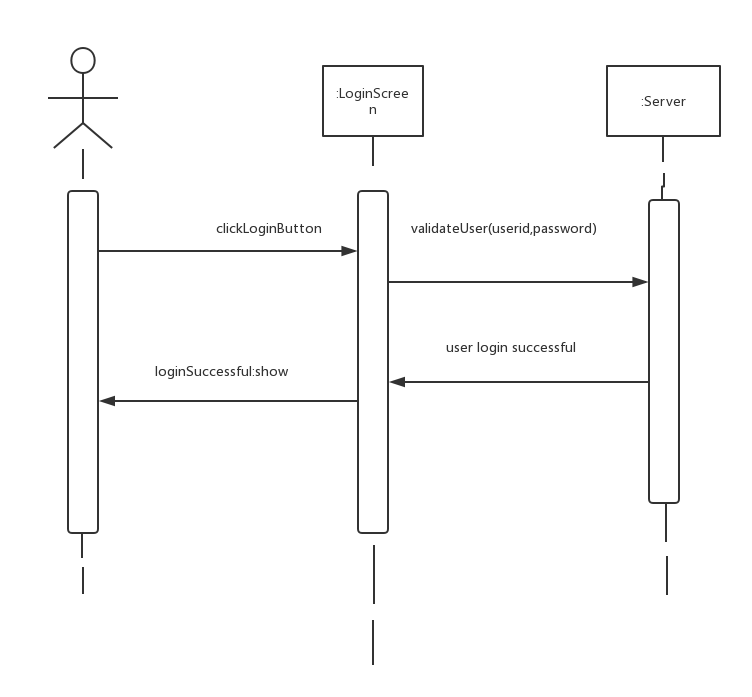

Sequence Diagram

Business system analysis 3

Use Interface Design

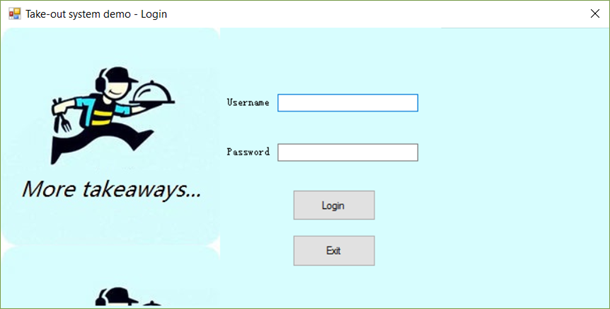

This is the sample login interface,

Business system analysis 4

This is the sample payment interface

Business system analysis 5

DATABASE DESIGN

Data Description

This subsection describes the data requirement for take-out management system. The data will be organized into tables. The tables with their description are shown below.

Orders

Field name	Brief Description	Field type	Restriction
Order_no	Order number (KEY FIELD)	Integer (20)	0-999999
Order_time	Order time	Time	-----
Order_date	Order date	Date	-----
Payment_status	Status of payment	String

Orderline

Field name	Brief Description	Field type	Restriction
Order_no	Order number	Integer (20)	0-999999
Item_no	Item number	Integer (10)	0-999
Quantity	Quantity of the item	Integer (10)	0-99

Menu

Field name	Brief Description	Field type	Restriction
Item_no	Item number (KEY FIELD)	Integer (20)	0-999
Item_price	Item price	Currency	$1-999
Item_name	The name of Item	String(20)	1-20char
Status	Status of the item	String(2)	BX, LX, DX, PX
Discount	Discount value	Percentage	0%-100%
Photo	Photo of the item	Object	-----
Description	Description of the item	String (40)	1-40 char

Employee

Field name	Brief Description	Field type	Restriction
Employee_no	Employee number (KEY FIELD)	Integer (10)	1-99
Name	Employee name	String (20)	1-20 char
Tel	Employee telephone number	Integer	8 digits
Address	Employee address	String (60)	1-60 char
Work_in_time	Start work time	Time	-----
Work_out_time	End work time	Time	-----
Day_off	Day off	Integer (10)	1-7
Salary	Salary of the employee	Currency	$1-99999
Email	Employee email address	String(100)	1-100 char
password	Employee login password	String(20)	1 – 20 char

Customers

Field name	Brief Description	Field type	Restriction
Customer_no	customer number (KEY FIELD)	Integer (10)	1-99
Name	customer name	String (20)	1-20 char
Tel	customer telephone	Char(20)	8 digits
Email	Customer email address	String(100)	1- 100 char
Address	customer address	String (60)	1-60 char
password	Login password	String(20)	1-20 char

Admin

Field name	Brief Description	Field type	Restriction
username	Admin username (KEY FIELD)	String (30)	1-30 char
Password	Admin login password	String (20)	char

Relational Schema

Order (Order_no, Table_no, Order_time, Order_date, Head_no, Payment_status)

Orderline (Order_no, Item_no, quantity)

Menu (Item_no, Item_name, Item_price, Status, Discount, Photo, Description)

Employee (Employee_no, Work_in_time, Work_out_time, Employee_name, Tel, Address, Salary, Dayoff, email, password)

Customer (customer_no, Work_in_time, Work_out_time, customer_name, Tel, Address, email, password)

Admin (username, password)
