Can someone please do these physics questions for me? You need to be able to do bending forces, shear forces and loads calculations

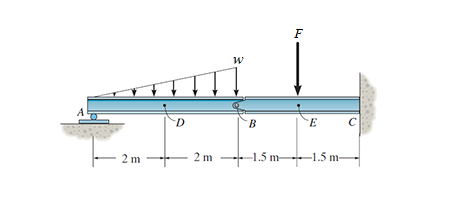

Q1. Suppose that w = 35 kN/m and F = 15 kN. Point E is just to the right of the F = 15 kN load.
Determine the magnitude of the resultant normal force at point D. Express answer in 3 significant figures.
Answer:
Determine the magnitude of the resultant shear force at point D. Express answer in 3 significant figures.
Answer:
Determine the magnitude of the resultant bending moment at point D. Express answer in 3 significant figures.
Answer:

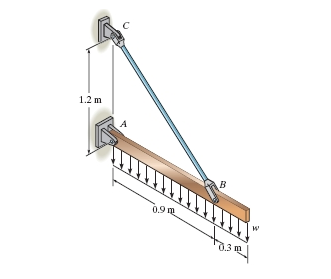

Q2. If the allowable shear stress for each of the 10-mm-diameter steel pins at A, B, and C is τallow = 90 MPa, and the allowable normal stress for the 13-mm-diameter rod is σallow = 150 MPa, determine the largest intensity w of the uniform distributed load that can be suspended from the beam.
Answer:

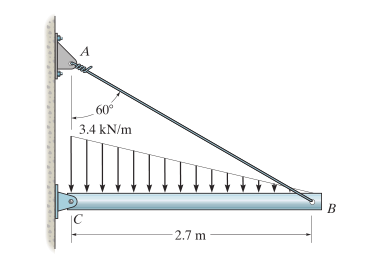

Q3. If the wire has a diameter of 4.7 mm, determine how much it stretches when the distributed load acts on the strut.
Express your answer three to significant figures and include the appropriate units.
Q4. A structural member in a nuclear reactor is made of a zirconium alloy. An axial load of 22 kN is to be supported by the member. Use a factor of safety of 3.5 relative to yielding. Ezr = 100 GPa, σY = 400 MPa. The material has elastic behaviour.
Determine its required cross-sectional area.
Express your answer to three significant figures and include the appropriate units.
Answer:
What is the load on the member if it is 1 mm long and its elongation is 0.6 mm?
Express your answer to three significant figures and include the appropriate units.
Answer:

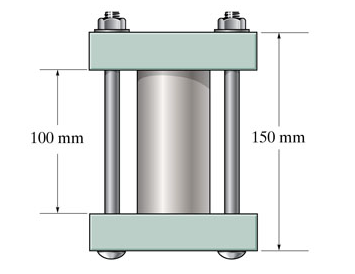

Q5: If the 304-stainless-steel carriage bolts of the clamp each have a diameter of 11 mm, and they hold the cylinder snug with negligible force against the rigid jaws, determine the force in the cylinder when the temperature rises to T2 = 130∘C.
Express your answer to three significant figures and include the appropriate units.
Answer:
