Simulation of bonded with simulation

Date: Monday, February 20, 2017
Designer: Solidworks

Study name: bonded

Analysis type: Static

Table of Contents

Description 1

Assumptions 2

Model Information 4

Study Properties 6

Units 6

Material Properties 7

Loads and Fixtures 8

Connector Definitions 8

Contact Information 9

Mesh information 11

Sensor Details 12

Resultant Forces 12

Beams 12

Study Results 13

Conclusion 13

Description

No Data

Assumptions

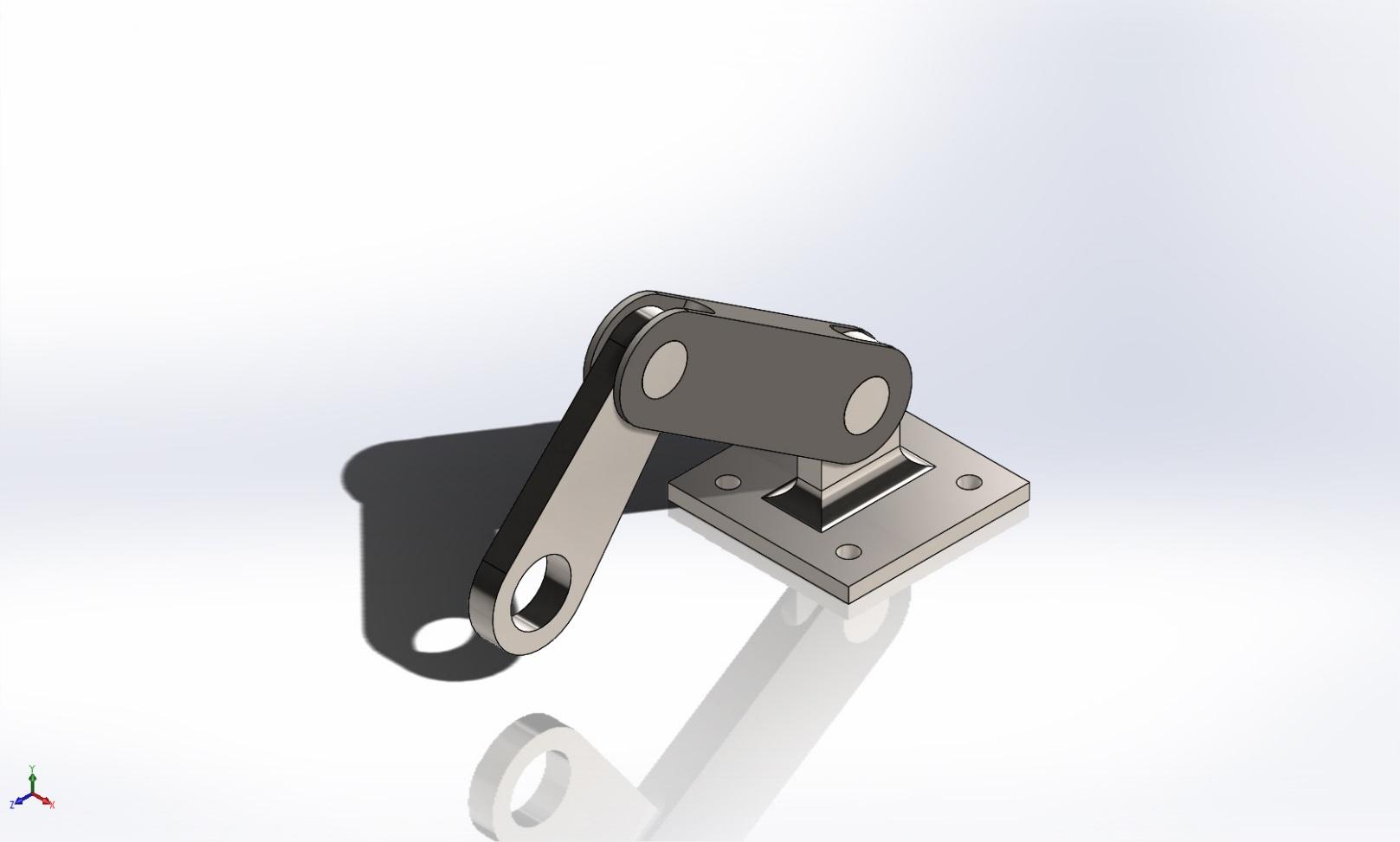

Model Information

Study Properties

Study name	bonded
Analysis type	Static
Mesh type	Solid Mesh
Thermal Effect:	On
Thermal option	Include temperature loads
Zero strain temperature	298 Kelvin
Include fluid pressure effects from SOLIDWORKS Flow Simulation	Off
Solver type	FFEPlus
Inplane Effect:	Off
Soft Spring:	Off
Inertial Relief:	Off
Incompatible bonding options	Automatic
Large displacement	Off
Compute free body forces	On
Friction	Off
Use Adaptive Method:	Off
Result folder	SOLIDWORKS document (E:)

Units

Unit system:	SI (MKS)
Length/Displacement	mm
Temperature	Kelvin
Angular velocity	Rad/sec
Pressure/Stress	N/m^2

Material Properties

Model Reference

Properties

Components

report about simiulation 3

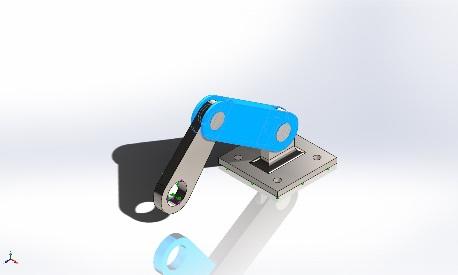

Name:	Alloy Steel (SS)
Model type:	Linear Elastic Isotropic
Default failure criterion:	Unknown
Yield strength:	6.20422e+008 N/m^2
Tensile strength:	7.23826e+008 N/m^2
Elastic modulus:	2.1e+011 N/m^2
Poisson's ratio:	0.28
Mass density:	7700 kg/m^3
Shear modulus:	7.9e+010 N/m^2
Thermal expansion coefficient:	1.3e-005 /Kelvin

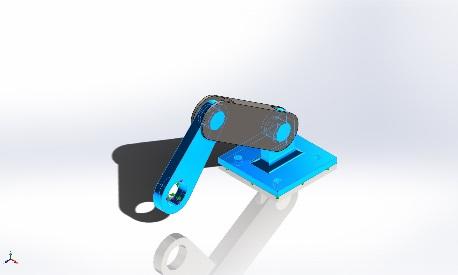

SolidBody 1(Cut-Extrude1)(Part 2 for homework 9-1)

Curve Data:N/A

report about simiulation 4

Name:	Alloy Steel
Model type:	Linear Elastic Isotropic
Default failure criterion:	Unknown
Yield strength:	6.20422e+008 N/m^2
Tensile strength:	7.23826e+008 N/m^2
Elastic modulus:	2.1e+011 N/m^2
Poisson's ratio:	0.28
Mass density:	7700 kg/m^3
Shear modulus:	7.9e+010 N/m^2
Thermal expansion coefficient:	1.3e-005 /Kelvin

SolidBody 1(Boss-Extrude1)(Part 4 homework 9-1),

SolidBody 1(Boss-Extrude1)(Part 5 for homework 9-1),

SolidBody 1(Fillet6)(part 1 for homework 9-1),

SolidBody 1(Boss-Extrude1)(part 3 for homework 9-1)

Curve Data:N/A

Loads and Fixtures

Fixture name

Fixture Image

Fixture Details

Fixed-1

Entities:	1 face(s)
Type:	Fixed Geometry

Fixed Hinge-1

Entities:	1 face(s)
Type:	Fixed Hinge

Load name

Load Image

Load Details

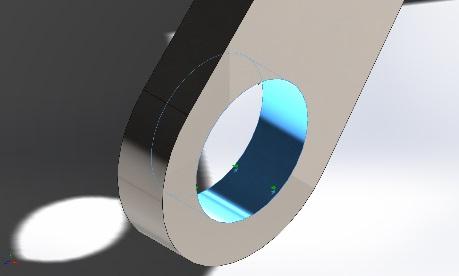

Force-1

report about simiulation 5

Entities:	1 face(s)
Type:	Apply torque
Value:	5000 lbf.in

Connector Definitions

No Data

Contact Information

Contact

Contact Image

Contact Properties

Contact Set-1

report about simiulation 6

Type:	No Penetration contact pair
Entites:	2 face(s)
Advanced:	Node to surface

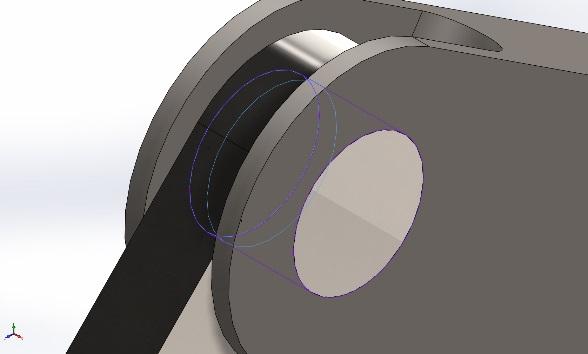

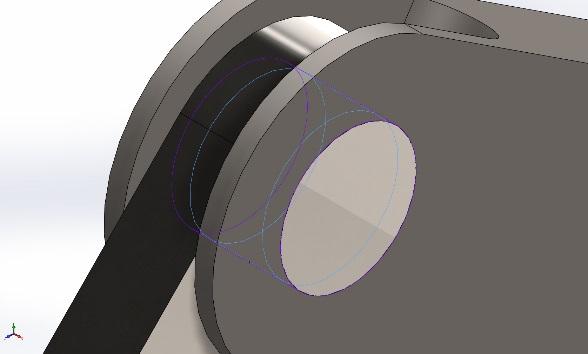

Contact Set-6

report about simiulation 7

Type:	No Penetration contact pair
Entites:	2 face(s)
Advanced:	Node to surface

Contact Set-5

report about simiulation 8

Type:	No Penetration contact pair
Entites:	2 face(s)
Advanced:	Node to surface

Contact Set-4

report about simiulation 9

Type:	No Penetration contact pair
Entites:	2 face(s)
Advanced:	Node to surface

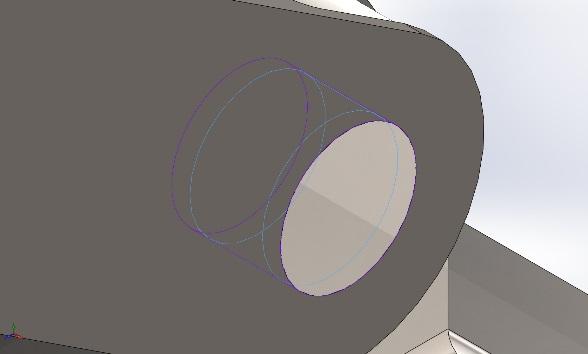

Contact Set-3

report about simiulation 10

Type:	No Penetration contact pair
Entites:	2 face(s)
Advanced:	Node to surface

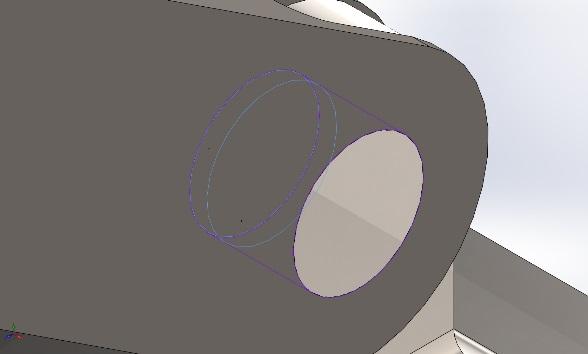

Contact Set-2

report about simiulation 11

Type:	No Penetration contact pair
Entites:	2 face(s)
Advanced:	Node to surface

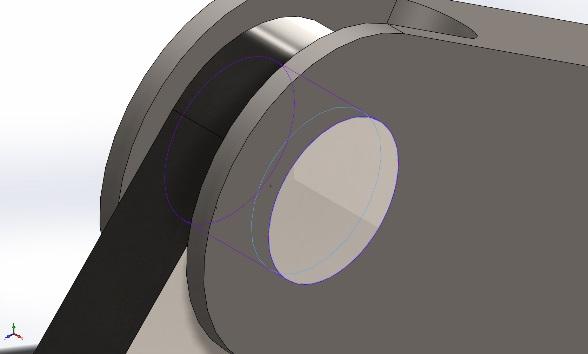

Global Contact

report about simiulation 12

Type:	No penetration (Surface to surface)
Components:	1 component(s)

Mesh information

Mesh type	Solid Mesh
Mesher Used:	Curvature-based mesh
Jacobian points	4 Points
Maximum element size	0.202738 in
Minimum element size	0.0675786 in
Mesh Quality Plot	High
Remesh failed parts with incompatible mesh	Off

Mesh information - Details

Total Nodes	49973
Total Elements	29494
Maximum Aspect Ratio	7.809
% of elements with Aspect Ratio < 3	97.7
% of elements with Aspect Ratio > 10
% of distorted elements(Jacobian)
Time to complete mesh(hh;mm;ss):	00:00:01
Computer name:	PNW2UA4450N3S

Sensor Details

No Data

Resultant Forces

No Data

Beams

No Data

Study Results

No Data

Conclusion

Analyzed with SOLIDWORKS Simulation
