Task Expected:

A residential building consisting of ground and first floor is required to be constructed A plan was proposed by the architect and handed over to the consultant for its structural analysis. Consider yourself to be an engineer assigned with the task of carrying out analysis of the structure, designing and detailing of components. Keeping in mind the ecological benefits, the client desires to have a green rooftop. The weight of roofing system, water proofing and drainage parameters accounts for an increased load at the roof level that needs to be taken into account in the analysis

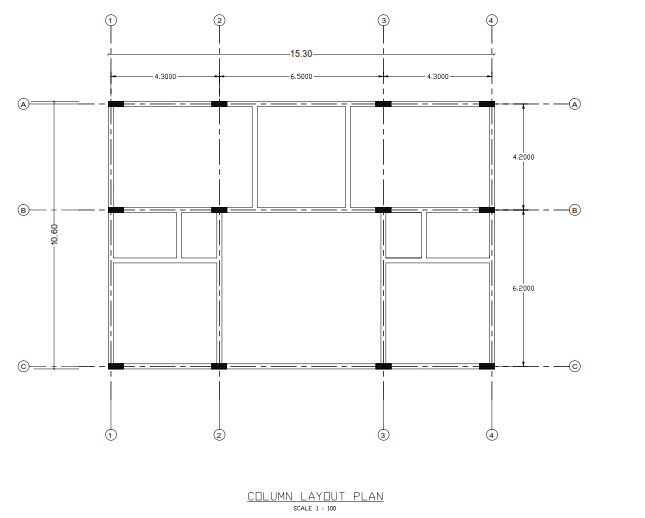

Figure 1 shows the Ground Floor Plan and Figure 2 shows the Column Layout Plan at the foundation level.

Table 1 shows the details of storey height to the first and second floor level, permanent action and temporary action, additional loads due to the roofing system, size of bemas and columns, against your student number

Considering no stiffening effect of the frame due to cladding of walls perform complete analysis by carrying out the following tasks.

1. Draw the beam-column layout plan. Sketch the load distribution on slabs and calculate the load on the beams for the frame assigned.

2. Calculate the flexural rigidity of the members and the rotation factors at the joints.

3. Considering the frames to be rigid jointed with no sway and with the stiffening effect of the cladding due to walls, not taken into account, perform analysis using Kani’s rotation contribution method and determine the final moments at the supports and the mid-span. Show the detailed calculations for the moments due to rotation contribution for two cycles and the final moments.

4. Draw the deflected shape of the frame. Compute the member end forces.

5. Sketch the moment diagrams for beams and columns and indicate the value of moments clearly.

6. Discuss about the basic principles of the classical iterative methods in the analysis of structures, their differences and relative advantages of one over the other.

Please Note:

The columns are rigidly connected to the foundation and there are no plinth beams at the foundation level

Consider 200mm thick walls over the beams as applicable.

Assume suitably any missing data and mention your assumptions clearly.
